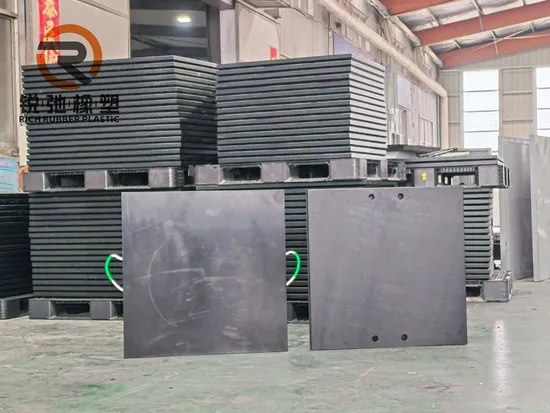

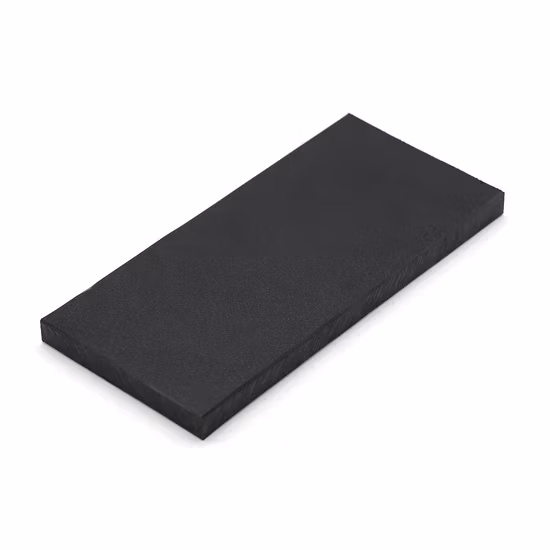

Durable Recycled HDPE UHMWPE Ground Crane Jack Outrigger Stabilizer Bearing Suppot Pad
Description
Basic Info
| Model NO. | HROP |
| After-sales Service | Perpetual |
| Warranty | 12 Months |
| Material | UHMWPE |
| Kind | Engineering Plastic Sheet |
| Water Absorption | ＜0.01% |
| Contraction Percentage | ＜0.4% |
| Tensile Strength | 30~40MPa |
| Thickness | 50-200mm |
| Color | Customized |
| Free Logo | Available |
| Density | 0.96 g/cm3 |
| Size | Customized |
| Cut to Size | Free |
| UV Resistance | Optional |
| Free Sample | Available |
| Main Market | America, Australia, Mina Counties |
| Certificate | ISO9001, ISO14001 |
| Hardness | 62-68 Shore D |
| Application | Chute Liner, Hopper Liner etc. |
| Service | CNC Machine |
| Working Temperature | -269 -- 85 Celsius Degree |
| Transport Package | Pallet with Strapping |
| Specification | 500x500x50mm & Customized |
| Trademark | Huarun |
| Origin | China |
| HS Code | 3920109090 |
| Production Capacity | 3000 Ton / Year |
Packaging & Delivery
Package size per unit product 100.00cm * 100.00cm * 100.00cm Gross weight per unit product 1200.000kgProduct Description
Product Description
Professional guidance of UHMW PE outrigger pad (What is the UHMWPE outrigger pad)
UHMWPE (ultra-high molecular weight polyethylene) outrigger pad is a type of accessory used for cranes, boom trucks, lifts and other heavy equipment that need to be stabilized on uneven or soft ground. It is a polymer material that has very high molecular weight and excellent properties for outrigger pad applications.
UHMWPE outrigger pad is usually placed under the outrigger or jack of the equipment to distribute the load over a larger area and prevent the outrigger from sinking or slipping into the ground. It also protects the ground surface from damage and reduces the noise and vibration during operation. UHMWPE outrigger pad can be used on various types of terrain, such as grass, mud, sand, gravel, asphalt, concrete, etc.
Features
· Extremely wear & abrasion resistance
· Extremely low friction
· High load capacity
· UV resistant
· Waterproof
· 100% recyclable
· Anti-corrosion
· Chemical resistance
· Anti-slip
· Easy to clean
· Easy to handle
· Lightweight Applications
· Mobile crane
· Boom truck
· Lift
· Fire truck
· Utility truck
· Concrete pump
· Aerial device
· Digger
· Mining vehicle
· Forestry vehicle
· Port security barrier system
| Properties | Test Method | Unit | Value |
| Density | DIN EN ISO 1183-1 | g / cm3 | 0.93 |
| Hardness | DIN EN ISO 868 | Shore D | 63 |
| Molecular Weight | - | g/mol | 1.5 - 9 million |
| Yield stress | DIN EN ISO 527 | MPa | 20 |
| Elongation at Break | DIN EN ISO 527 | % | >250 |
| Melting temperature | ISO 11357-3 | °C | 135 |
| Notched impact strength | ISO11542-2 | Kj/m2 | ≥120 |
| Vicat Softening Point | ISO306 | °C | 80 |
| Water absorption | ASTM D570 | / | Nil |
Finished Production
Application
Our Advantages
Company profile
Huarun Rubber & Plastic is an OEM manufacturer of high-quality HDPE (high-density polyethylene), PP (polypropylene) and UHMW PE (ultra-high molecular weight polyethylene) sheets and their finished products.Founded in 2013 with 30000 square meters production area, Huarun has grown to become one of the leading suppliers of plastic sheets in China. The products are made from high-quality raw materials sourced from reliable suppliers. Such as Ground protection mat, Ice rink tiles, Outrigger pad, CNC machined parts, Marine fender facing pad, Chain guide rails, Hopper liners, Chute liners, Borated polyethylene sheets, PP tanks, and more.
Huarun has advanced equipment and technology to ensure consistent quality and performance. Such as 6 units of extrusion lines, 13 units of hydraulic machines, 24 units of CNC milling machines, 10 units of drilling machines and 1 lab. Regarding the certificate, the ISO 9001 certification has been obtained for its quality management system. Huarun has also won several awards for its innovation and excellence in plastic sheet manufacturing.
The reliable and durability will be provided to protect the client's cargo during shipping according to the condition of the goods, which includes Plywood, Pallet, Strapping etc. Huarun's vision is to become a global leader in plastic sheet manufacturing and a trusted partner for customers worldwide.
Certifications
Packaging & Shipping
FAQ
FAQQ: Are you a trading company or a manufacturer?
A: We are a manufacturer, and our factory is located in Dezhou city, which is only 1 hour away from Beijing by bullet train. You are welcome to visit us.
Q: How long is your delivery time?
A: It depends on the quantity and material of your order. We can also handle rush jobs for urgent orders.
Q: Do you provide samples? Is it free or extra?
A: We can provide free samples, but you may need to pay for the express cost.
Q: What are your terms of payment?
A: We accept TT, LC, Western Union, PayPal, Trade assurance, Cash, etc.
Q: Do I need an installation team?
A: No, the installation is very easy. You just need to connect the panels together according to our installation video and drawing.
Q: Can you provide customized service?
A: Yes, we can customize the size and shape of the product according to your drawing. We can also engrave your logo on the product.
